Fourplex + Multi-Family

Multi-Family Design Calgary

Fourplex site planning, livable units and coordinated drawings for small-scale residential development

A fourplex has to make sense from the street, at each front door and inside every unit. We test all three while the plan is still easy to change.

Discuss Your Project Read About the Work

Luxury fourplex design in Calgary by Amaya Design

Starting Point

A Fourplex Has to Work at the Scale of the Site and the Front Door

A fourplex often begins as a development target: a property, a unit count and an approximate area. The people who eventually live there will experience something more ordinary. They will look for their front door, carry groceries up the stairs, open blinds toward a neighbour, store bicycles and find a place for waste bins. Good multi-family design has to reconcile both points of view.

We usually start with the site rather than a preferred unit plan. Parking, vehicle movement, grade, entries, outdoor space, waste, utilities and mechanical requirements take real area. Once those pieces are visible, the unit layouts can be tested without pretending the rest of the property is empty.

Fitting four plans behind one elevation is the easy diagram. The harder work is making the building believable from the sidewalk and comfortable at the kitchen table, then documenting it well enough that planning reviewers, consultants and builders are looking at the same proposal.

Inside Each Home

Density Is Felt in the Small Decisions

A front door that is easy to find
Rooms with usable furniture walls
Storage near the routines that need it
Windows placed for daylight and privacy

Residents notice the width of a stair, whether a sofa has a sensible wall, how far groceries travel from parking, and whether the main bedroom window faces another unit at close range. These details can disappear when the plan is judged only by total floor area.

We test furniture, door swings, storage and circulation while the units are still flexible. Repeated plans can simplify structure and servicing, but they do not always produce four equal homes. A corner unit, a side street or the house next door may change where daylight and privacy are available, so selected units sometimes need a different response.

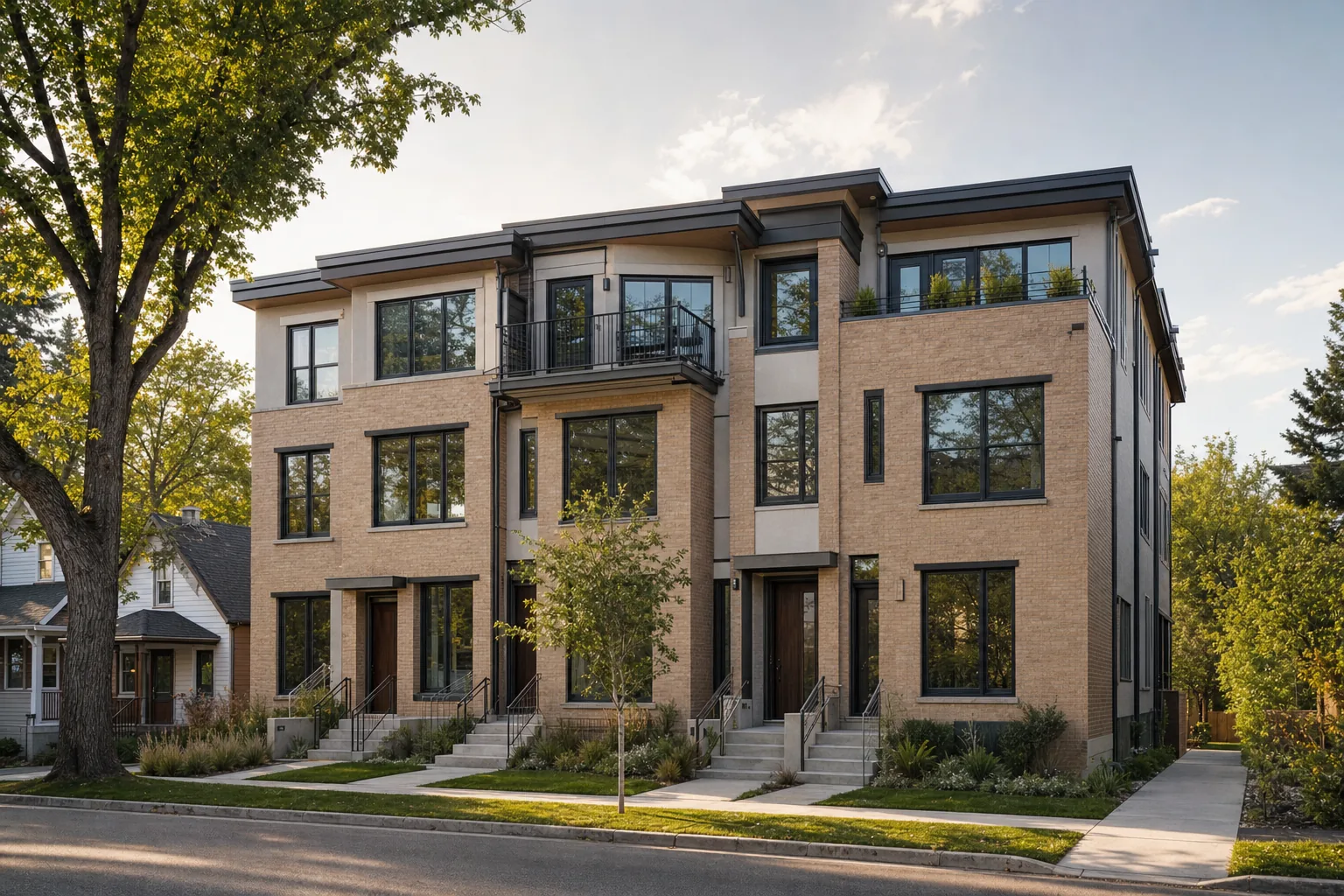

Conceptual Calgary fourplex street elevation with individual entrances and a unified brick exterior — Concept study: individual entrances can remain easy to find without breaking the street elevation into four unrelated pieces.

Across the Property

The Leftover Spaces Are Not Leftovers

Vehicle access and realistic turning
Waste, meters and service clearances
Private and shared outdoor areas
Drainage, grade and maintenance routes

The narrow spaces between buildings, parking, paths and property lines still have jobs to do. They may carry drainage, utilities, waste movement, maintenance access or the daily route from a rear stall to a front entry. If those routes are not drawn early, they tend to become conflicts later.

In practice, the site plan gets crowded quickly. Waste should not take over an entrance, cars should not need an imaginary turning radius, and private outdoor space should connect to the home it belongs to. Drawing those movements at a useful scale usually exposes conflicts before they reach a planning submission.

Unit Mix and Stacking

A Repeated Plan Is Useful Only When It Solves the Same Problem

Stairs and bearing lines checked across every floor
Kitchens, bathrooms and services stacked where practical
Corner and end units adjusted for their exposure
Bedrooms tested with real furniture dimensions

Clients looking for fourplex design in Calgary often arrive with a target area for each unit. Area is a useful starting point, but it does not tell us where the stair lands, whether a bed fits between the windows, or how a resident reaches the backyard. We compare the units room by room before deciding which parts should repeat.

Kitchens, bathrooms and mechanical spaces can often stack to make structural and service coordination more direct. That repetition should not override the site. A corner unit may deserve windows on a second exposure, while a unit beside a busy path may need a different entry or bedroom arrangement. On higher-end fourplexes, privacy, daylight and quieter room relationships usually matter more than making every plan identical.

Approval and Consultant Timing

The Submission Package Begins Before the Permit Drawings

Current property and survey information gathered first
Approval assumptions recorded instead of implied
Consultant responsibilities assigned to the right stage
Open items tracked before submission

Multi-family design in Calgary is shaped by the approval path as well as the household plans. The property information, land-use assumptions, parking approach, grade and servicing questions need to be reviewed while options are still open. Waiting until the elevations are polished can leave the team revising work that was based on an untested assumption.

We also identify when survey, structural, civil, energy, mechanical or other specialist input may be needed. Not every consultant starts on the same day, but their responsibilities should be understood before the drawing list and schedule are treated as final. This is especially important when utility locations, retaining, drainage or structural spans can change the architecture.

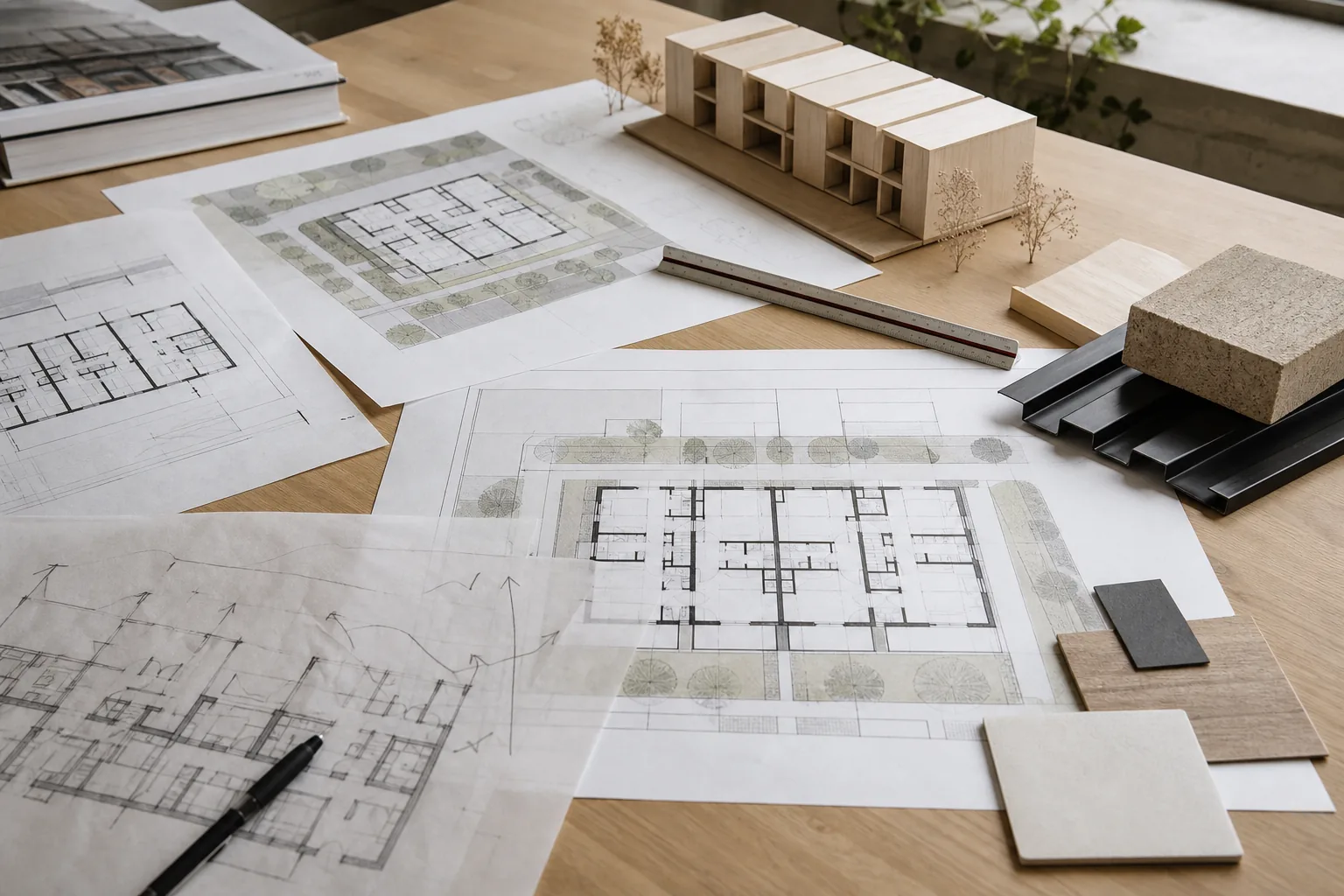

Conceptual fourplex site plan, unit drawings, material samples and massing model on an architect's table — Concept study: site, unit plans, building form and material decisions are reviewed together rather than as separate exercises.

Site and Unit Planning

What We Need to Resolve Before the Building Form Is Fixed

On a fourplex, a stair is never only a stair. Move it and the bedrooms, structure, windows and entry may all shift with it. The same is true of parking, utility rooms and exterior doors.

What remains after access and servicing are placed?

The survey, grade, vehicle route, parking, waste, utilities and required clearances are tested before the buildable area is treated as settled.

Can every resident find a front door?

Entries need a clear address, weather protection and a route from the street or parking that does not feel secondary or accidental.

Do structure and services stack sensibly?

Bearing lines, stairs, plumbing, mechanical space and shafts are easier to coordinate when they are considered across every floor and unit.

Which rooms receive useful daylight?

Window area alone is not enough. Room depth, exposure, neighbouring walls and direct views determine whether the light is useful and private.

Where does ordinary household clutter go?

Coats, cleaning supplies, seasonal items, bicycles, bins and mechanical equipment need assigned space that does not consume primary rooms.

What must be confirmed before the plan hardens?

Planning assumptions and consultant responsibilities are identified early so unresolved items do not quietly become design constraints later.

From Brief to Drawings

How a Fourplex Moves From Site Study to Drawings

We begin with decisions that are expensive to undo: site access, building placement, unit arrangement and stairs. Dimensions, materials and consultant details follow once that framework is working.

Property and brief review

We review the survey and available property information alongside the intended unit mix, target areas, parking approach and project priorities.

Site, unit and massing studies

Early options test building placement, entrances, stairs, unit plans, parking, outdoor areas and the overall form as one problem.

Coordination and design development

The preferred option is refined across plans and elevations while structural, servicing and other required consultant information is incorporated.

Approval and builder drawings

The coordinated design is documented for the agreed approval path and gives builders a clearer basis for project review and pricing.

A Connected Drawing Set

One Change Has to Reach Every Unit, Elevation, and Site Drawing

A fourplex cannot be coordinated one unit at a time. Stairs, structure, rooflines, windows, services and grade cross between drawings and often between homes.

Site plan with access, parking, entries, outdoor areas, waste and servicing

Unit plans with dimensions, furniture tests, stairs, storage and service space

Exterior elevations that give the building a clear street presence without disguising how it works

Window relationships between units and neighbouring properties

Consultant and approval information appropriate to the project scope

Selected Work

Two Calgary Fourplexes, Two Different Site Responses

The SW Calgary project uses a corner condition and loft terraces, while the Killarney project organizes four three-storey homes and secondary suites within an inner-city setting. The same unit count does not produce the same building.

Calgary fourplex exterior with red brick, black stucco, and large windows

SW Calgary Fourplex

Read Project Notes

Boutique multi-family design in Calgary with modern exterior materials

Killarney Fourplex

Read Project Notes

More Services

Related Calgary Residential Design Services

Custom Home Design Calgary

Custom Luxury Homes

Infill Design Calgary

Inner-City Single-Family and Semi-Detached Homes

Luxury Home Renovations Calgary

Major Home Renovations and Additions

Common Questions

Questions Developers Ask About Fourplex Design in Calgary

What does boutique multi-family design mean?

We use the term for smaller residential developments, including fourplexes, where the unit plans, exterior and site can be developed as one coordinated project rather than as a large apartment building.

Can you tell us whether a Calgary lot can support a fourplex?

An early study can test the property information, intended units, access and major site demands. It is not an approval guarantee or a substitute for required consultant work, but it can expose conflicts before a full design is developed.

When should a fourplex designer become involved?

Before the unit arrangement, parking concept and major development assumptions are fixed. Early review leaves room to compare options instead of trying to rescue a preferred layout after site constraints are known.

How do you avoid four identical units that do not fit the site equally well?

Repetition is useful, but corner exposure, street frontage, neighbouring windows and outdoor relationships may require selected differences. We compare those conditions before deciding what should repeat and what should change.

Are parking, waste and utility locations part of the design?

Yes. They occupy space, affect circulation and can change the building placement. The exact requirements and clearances depend on the property, proposal, providers and current municipal rules.

Can the drawings be used for builder pricing?

Developed drawings give builders a much clearer basis than a unit count and area schedule. Pricing still depends on specifications, consultant information, site conditions and the level of detail completed at the time.

Which consultants are usually involved?

The team depends on the site, building and approval path. Structural, civil, survey, energy, mechanical and other specialist input may be required. Responsibilities should be identified as the proposal becomes clear.

Project Information

Send the Address, Survey, Unit Brief, and Parking Assumptions

We can begin with the information you already have and identify which site, unit-planning and consultant questions should be tested next.
